|Type||Full motion TV wall mount|
|VESA pattern||200×100mm to 600×400mm|
|Weight capacity||100 lbs.|
|Swivel||45° left or right|
|Tilting||5° up and 15° down|
|Material||Cold Rolled Steel|
|Installation||16''/18''/24'' Dual wood stud or concrete wall|
|Product Weight||16.5 lbs.|
|Shipping Dimensions||17.95 x 12.71 x 3.9 inches|
Full motion TV wall mount MD2617-24K not only keeps your TV safely on the wall but will dramatically improve your viewing experience. It comes with extra extension brackets to extend the 16'' wall plate to accommodate the 24'' wood stud.
70 inch TV wall mount fits most 42''-70'' flat or curved screen TVs and it loads up to 100 lbs. It is compatible with VESA hole patterns from 200mm x 100mm to 600mm x 400mm. This TV wall mount works with most TV brands, including TCL, Samsung, SONY, VIZIO, LG, Panasonic, Toshiba, Sharp, Philips, Element, Sceptre, Hisense, Insignia, Roku, etc.

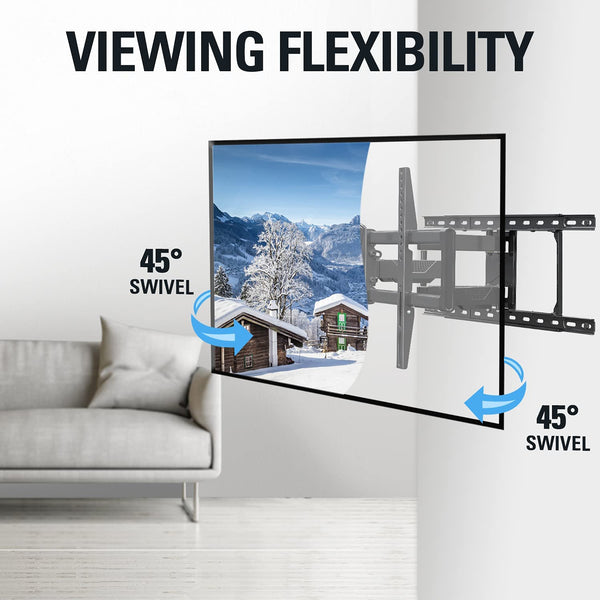

This full motion TV wall mount features 16.6'' of extension, even a large TV can get plenty of flexibility to adjust the TV to different angles. You can swivel the TV 45° left or right to view it from different seats or an adjoining room. Tilting the screen 15° down to lessen glare and get a comfortable viewing. When you finished watching TV, you can pull the TV 2.59'' back to the wall with no tools needed.
This swivel TV mount is designed with integrated cable management. After the TV is hung, the screen can be tilted 5° up to easily manage cables. Plus, the articulating arms are equipped with cable ties. The wires or cables from the TV can be organized and hidden to create a sleek look.
The heavy duty TV wall mount MD2617-24K is made of heavy-duty aluminum and steel for durability and safety. It is built with 6 articulating arms and it can hold a TV up to 100 lbs. sturdily. It has been strength tested before leaving the factory to ensure security for your TV and your family.
Full motion TV wall mount MD2617-24K has a 16'' wall plate and 4 extension brackets, which can fit 16''/18''/24'' wood studs or concrete wall. The package includes all necessary hardware and a detailed user manual. It takes 3 simple steps to complete the installation. 1. Install the wall plate. 2. Attach brackets to the TV back. 3. Hang the TV on the wall plate. 4° leveling adjustment allows leveling the TV even after installation.
